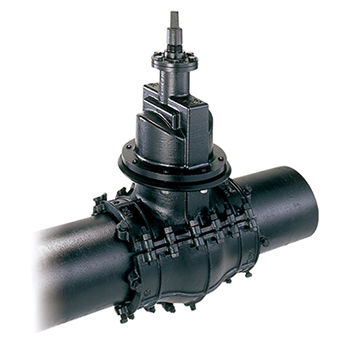

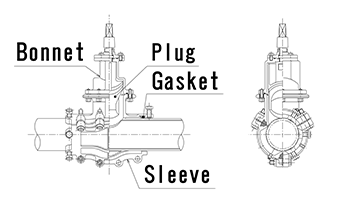

Yano Stopper consists of a split tee, a rubber-faced plug and a bonnet which stores a spindle for vertically moving the plug. The plug is inserted into a cut hole made in the pipe by under pressure drilling.
●

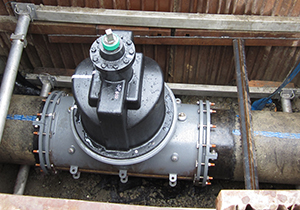

Yano Stopper can be installed at any part on the pipeline under pressure.
●
Yano Stopper is installed in its full open state, and can be closed at any time.
PIPE SIZE
75mm
100mm
150mm
200mm
250mm
300mm
400m
500mm
600mm
TIME
60min
60min
90min
120min
180min
180min
200min
300min
360min
WORKERS
2
2
2
3
3
3
3
4
4
※The Installation Time depends on the condition of the site.
75mm to 600mm
Cast iron, ductile iron, steel and PVC pipes.
1)
Set the three-piece sleeve onto the pipeline and tighten the bolts and nuts.
Fit the tapping valve and the tapping machine.
2)
Cut a hole, retract the cutter with coupon and close the tapping valve.
Remove the tapping machine.
3)
Fit the inserting tool with rubber-faced plug and bonnet set.
Push the bonnet down to the sleeve flange and bolt the bonnet tightening.
4)
Remove the inserting tool and the tapping valve and fit the spindle cap. Close the plug and installation is complete.
